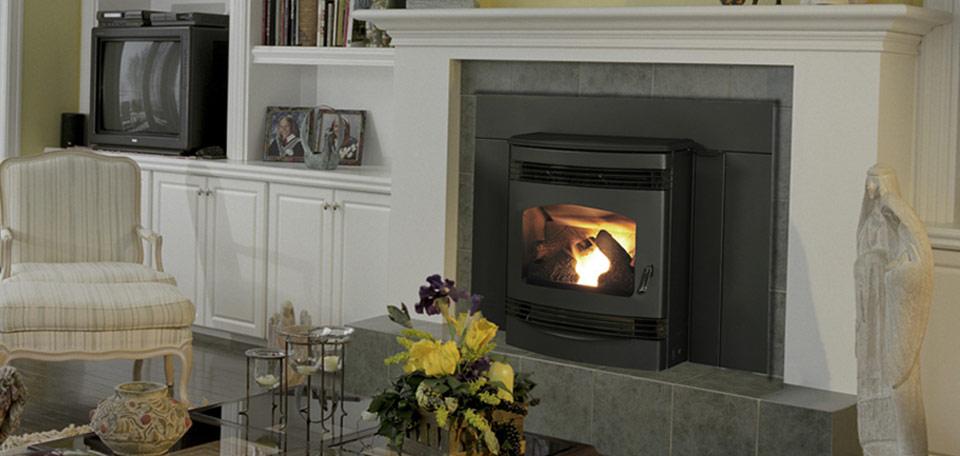

The Santa Fe is a sleek, contemporary and eco-friendly heating option. But don’t let its size fool you—this compact unit packs some heating punch. Expect clean, durable and long-lasting performance from this advanced insert.
Unit Type Id:
{6F465477-2A0D-4590-951F-1611FA38B09F}
Brand:
Quadra-Fire
Brand Code:
QDF
Fuel Type:
Pellet
| Unit Width: | 21-1/2" |
| Unit Height: | 25-3/8" |
| Firebox Minimum Front Width Firebox Opening: | 29-1/8" |
| Firebox Minimum Height Minimum Opening: | 23-1/4" |
| Firebox Minimum Depth Firebox Opening: | 13" |
| Firebox Minimum Back Width Opening: | 23-7/8" |
| Firebox Minimum Front Width Opening: | 29-1/8" |
| Extension Onto Hearth: | 8-5/8" |
| Fuel Type: | Pellet |
| BTU/hr Input: | 9,400 - 30,600 |
| Heating Capacity: | 700 - 1,900 sq ft |
| Hopper Size: | 45 lbs |
| Viewing Area: | 201 sq in |
| Efficiency: | LHV 70%, HHV 66% |
| Emissions: | 1.1 grams/hour |
| Unit Width: | 21-1/2" |
| Unit Height: | 25-3/8" |
| Firebox Minimum Front Width Firebox Opening: | 29-1/8" |
| Firebox Minimum Height Minimum Opening: | 23-1/4" |
| Firebox Minimum Depth Firebox Opening: | 13" |
| Firebox Minimum Back Width Opening: | 23-7/8" |
| Firebox Minimum Front Width Opening: | 29-1/8" |
| Extension Onto Hearth: | 8-5/8" |
| Fuel Type: | Pellet |
| BTU/hr Input: | 9,400 - 30,600 |
| Heating Capacity: | 700 - 1,900 sq ft |
| Hopper Size: | 45 lbs |
| Viewing Area: | 201 sq in |
| Efficiency: | LHV 70%, HHV 66% |
| Emissions: | 1.1 grams/hour |
